*Once ordered Cura profile with initial configuration for this material will be available for download
Features:

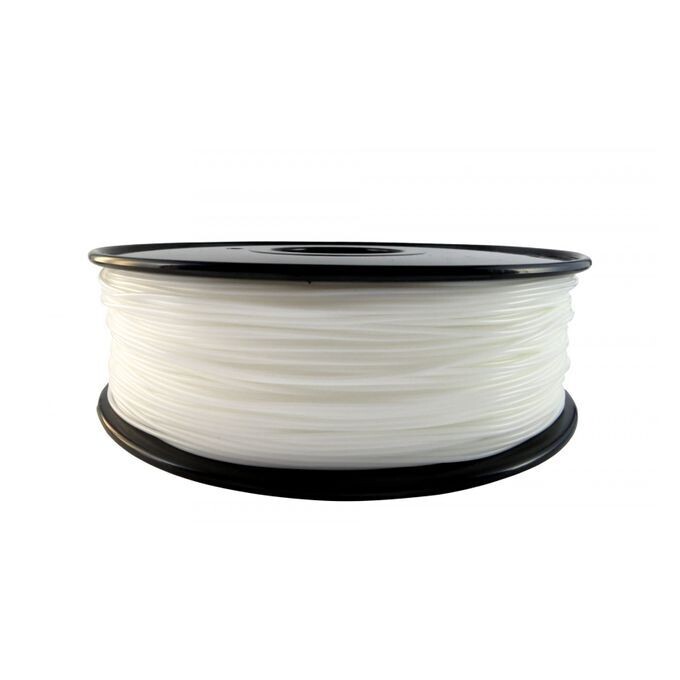

Nylon is a flexible, durable plastic with less strength and stiffness than both PLA and ABS. Its malleability lends it much more toughness than the other two, however, with an impact resistance ten times that of ABS. Nylon also boasts a good chemical resistance, which opens the possibility to more industrial applications. As with ABS, nylon requires extra care to print; it needs to be extruded at high temperatures and, due to its tendency to soak up moisture from the air, must be kept in a dry box.
Nylon Filament Specifications:
TECH SPECS | Imperial | Metric |
---|---|---|
Heat Deflection (ASTM 648, 66 psi) | 196°F | 91°C |
Flexural Modulus (ASTM D790, 15 mm/min) | 250,000 psi | 1,700 MPa |
Tensile Strength at yield (ASTM D638, 50 mm/min) | 9,570 psi | 66 MPa |
Tensile Modulus (ASTM D638, 50 mm/min) | 319,000 psi | 2,200 MPa |
Strain at Yield - Elongation (%) | >10% | >10% |
Notched Impact Strength (ASTM D256) | 3.5 ft-lb/in | 187 J/m |
*Specifications based on data provided by the material supplier. Actual printed part specs may vary based on part geometry and print parameters selected.
We have been a manufacturer and service company under the name of WerashCO for additive manufacturing since 2017 starting with largest scale FDM 3D printer in the middle east. Since then, we have expanded into new digital fabrication technologies for a variety of industries. Our aim is to manufacture reliable and industrial grade digital manufacturing machines in Egypt and dominate the Egyptian market in FDM (Fused Deposition Modeling) 3D Printers, Desktop CNC milling Machines, and Foam cutting machines.
